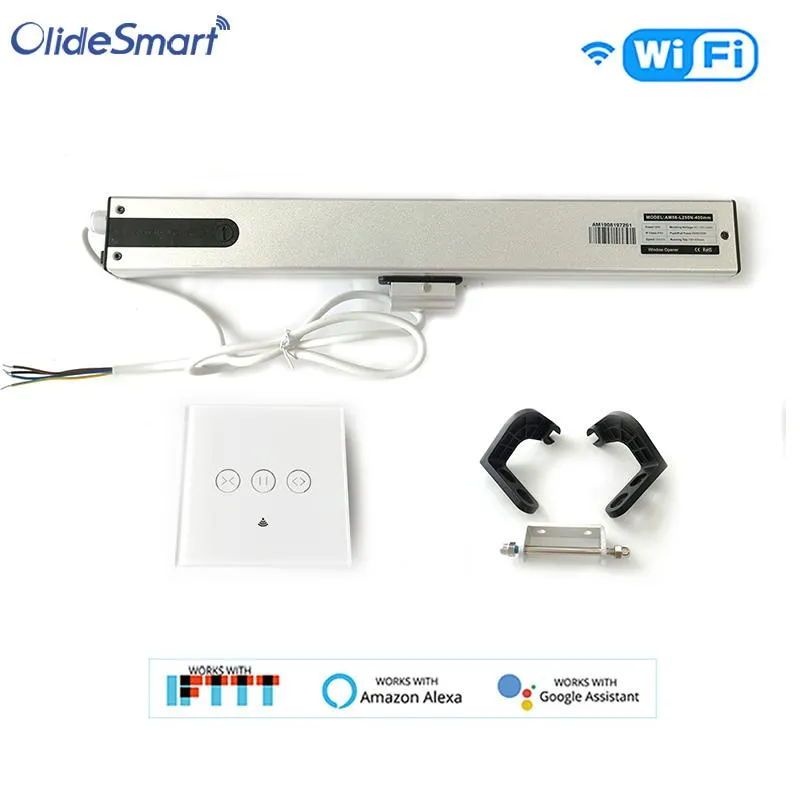

Wifi Smart AC Adjustable Stroke Automatic Window Opener Function
-
Voice Control
Use Alexa and Google home smart speakers to control window switch with simple voice to free hands,use your voice to control the connected devices easily.
-
Timing Function
Open and close your windows according to your own schedule.
Don't worry about forgetting to turn it on or off.
-
Phone APP Control
Work with "smart life" APP. Control your windows at anytime, anywhere with your mobile phone. No matter you are at work or traveling, no matter it is raining or sunny, you can open and close the window with one touch of your mobile phone.
Never have to rush home in rainy days, and you don’t have to worry about the air in your home when you going out for a long time.
-

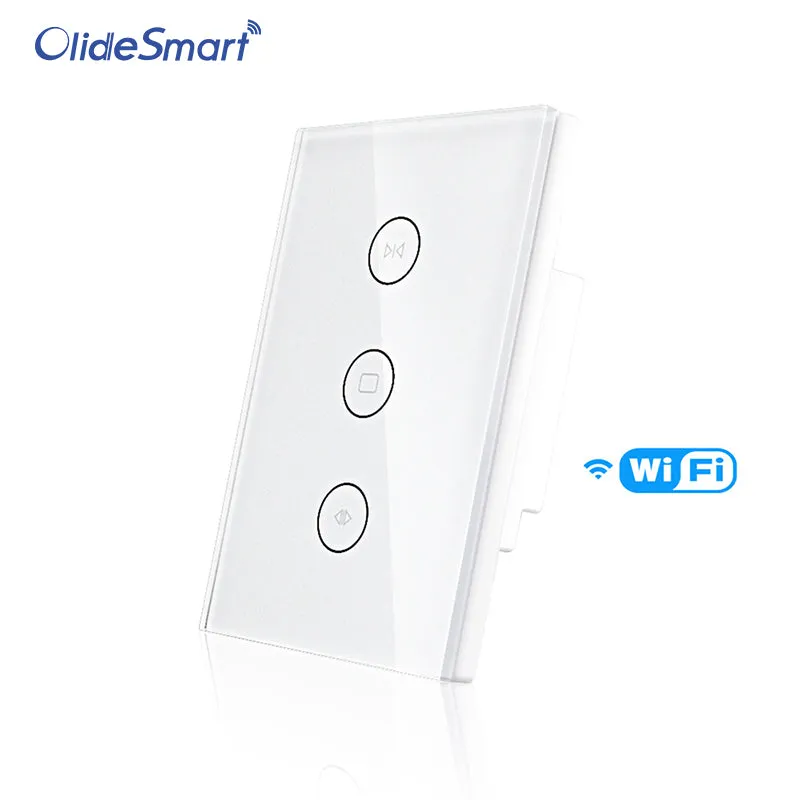

Capacitive Touch Panel Control
Touch feel like a mobile phone's touch screen. Touch sensitive, stable response.
Clear action icons on touch panel: open, stop, close.
-
Adjustable Stroke
Journey setting

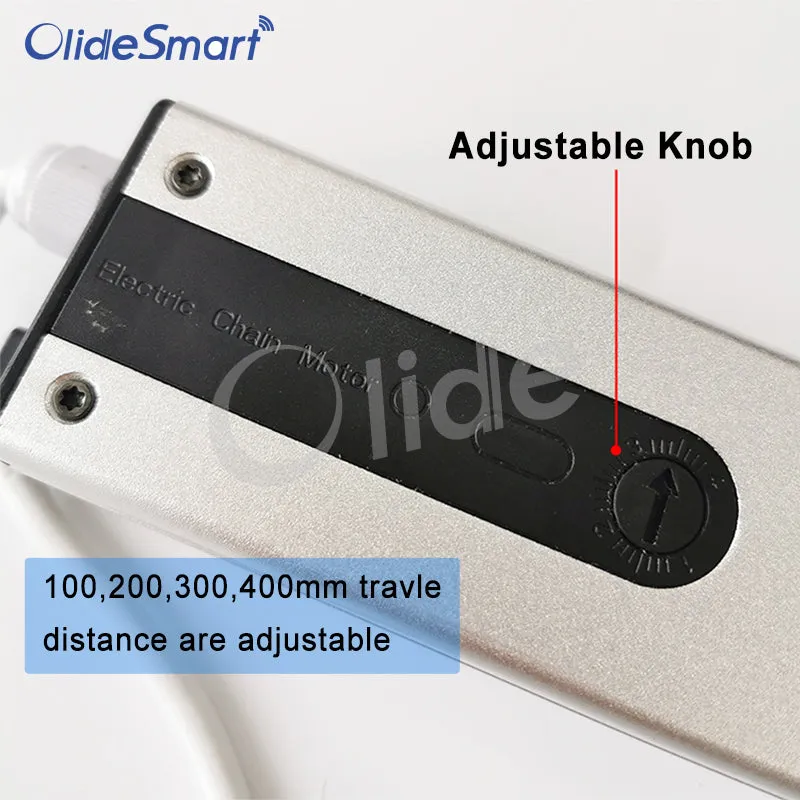

There are 1, 2, 3, 4 four figure on the adjusting knob, as the left photo shown, each figure means I 00mm, 200mm, 300mm and 400mm joumey. You could refer to these figures adjust the journey you want.
For example: If you want the motor extend 200mm, you could operate as follow:
1. Adjust the knob to figure 2.
2. Operate the motor, the motor will open the window 200mm and stop automatically(If the journey is not the perfect position, you could adjust the knob a little; the motor will not run automatically after your adjusting, you have to shut the window and then open the window again, motor will run to the new limit position).
Attention: The motor closing stop against obstacle.
Smart Adjustable Stroke Automatic Window Opener Features
1. Wide voltage 100-240V AC power input, suitable for all country's different requests.
2. Adjust the journey by adjusting knob; the maximum stroke could reach 400mm.
3. Apply to small size window, down to 470mm windows.
4. The chain materials use double layers stainless metal.
5. Quality stable and smooth running.
6. Aluminum housing with sand blast treatment; the cover and brackets are zinc alloy die castings.
7. Two frame resistance ABS holders and the POM sliding guide make the motor more safety and silent.
Technical Specifications
Model No.: AM56
Rated Voltage: AC 100-240V
Rated Power: 28W
Push/Pull Force: 250N/250N
Speed: 10mm/s
Running Trip: 100-400mm
Temp: -20°C~ 75°C
IP Class: IP 43
Product size: 43(L)x5.5(W)x4.5(H)cm / 16.93(L)x2.17(W)x1.78(H)inch
