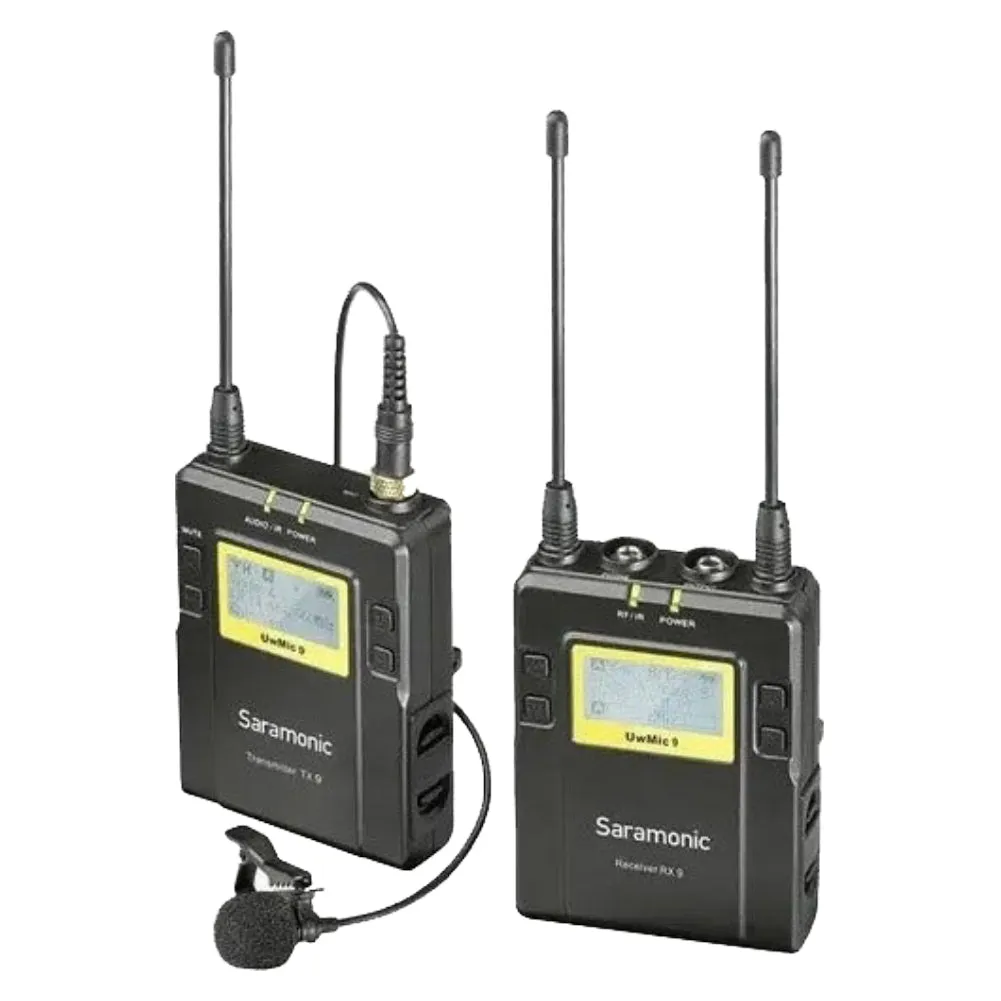

Meet the Saramonic UWMIC9 RX9 TX9, a 96-Channel Digital UHF Wireless Lav Mic System designed for seamless audio capture on the go. This portable system mounts effortlessly onto your camera, offering versatility across various environments including video production, field recording, interviews, broadcast TV, and ENG applications.
The system's RX9 camera-mountable receiver features a wide switching RF bandwidth and an easy-to-read LCD display. It is built with infrared synchronisation between transmitter and receiver, is equipped with an auto-scan function, and can search for an available transmission frequency. The headphone jack provides real-time monitoring with headphones, which is useful for cameras that lack a monitor output.
The compact transmitter employs a crystal-controlled PLL synthesiser and is equipped with a muting function. The RF power output can be switched between high, middle, and low settings. A 1/8" type mic input is built into the transmitter. Also, included with this system is a lavalier microphone, a shoe mount adapter, and a 1/8" to XLR output cable.
Specifications
- RX9 Bodypack Receiver
- TX9 Bodypack Transmitter
- Lavalier Microphone
- 96 Selectable Channels
- Up to 100 m Operating Range
- Easy-to-Read LCD Display
| Frequencies | 96, A & B group |
| Channel Number | Dual Channel Available |
| Distortion | 0.5% or less |
| Reference Deviation | 5 kHz (-60 dBV, 1 kHz input) |
| Receiving Sensitivity | -95 dBm |
| Receiving Frequency | 514 to 596 MHz |
| Oscillator Type | PLL synthesizer |
| Voice Delay | 12 ms |
| Batteries | Two AA size batteries |
| Spurious and Harmonic Suppression | -60 dB |
| Analog Outputs | 3.5 mm jack |
| Dimensions | 17 x 6.4 x 3.0 cm |
| Weight | 219 g (excluding batteries) |
| Signal to Noise Ratio | 70 dB or more |
| Audio frequency response | 40 Hz to 18 kHz (3 dB) |
What's Included
1 x RX9 Portable Receiver
1 x Shoe Mount Adapter
1 x Belt Clip
1 x XLR-BMP Audio Output Cable
1 x 3.5mm Plug-BMP Audio Cable
1 x TX9 Bodypack Transmitter
1 x Omnidirectional Lavalier Microphone
1 x Microphone Holder Clip
1 x Windscreen
1 x Belt Clip
