This 15" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 15 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.
The horn-loaded woofer's outstanding bass reproduction makes the ICOA 15 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility. The white version with a white grille blends in subtly into any environment and doesn't distract.
Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 125 dB peak and has 1000 Watt peak performance.

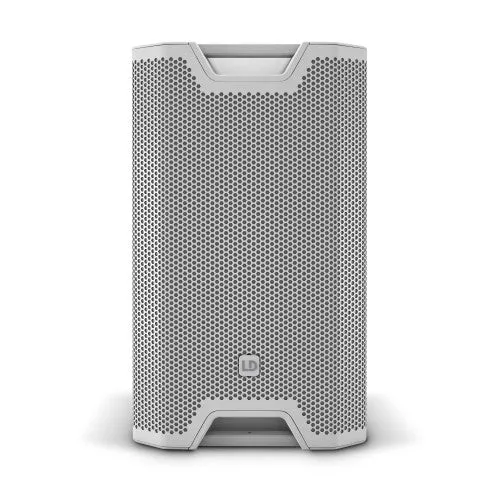

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 15 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
Product type | PA loudspeaker |
Type | Passive |
Color | White (RAL 9003) |
Low/mid Woofer dimensions | 35 " |
Woofer dimensions (mm) | 381 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
Horn | BEM optimized CD Horn |
HF driver dimensions | 1 " |
HF driver dimention (mm) | 25.4 mm |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
HF driver voice coil | 1.4 " |
HF driver voice coil | 35 mm |
Dispersion (H x V) | 90° x 50° |
Load rating (RMS) | 250 W |
Peak power | 1000 W |
Frequency response | 48 Hz - 20000 Hz |
Crossover frequency | 2000 Hz |
SPL (1W/1m) | 95 dB |
Max. SPL | 125 dB |
Impedance | 8 Ohm(s) |
Loudspeaker inputs | 1 |

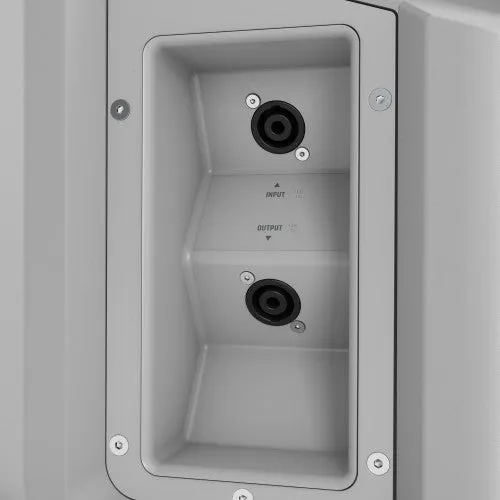

Speaker input connections | Speakon compatible |
Loudspeaker outputs | 1 |
Speaker output connections | Speakon compatible |
Cabinet material | Polypropylene |
Cabinet construction | Bass Reflex |

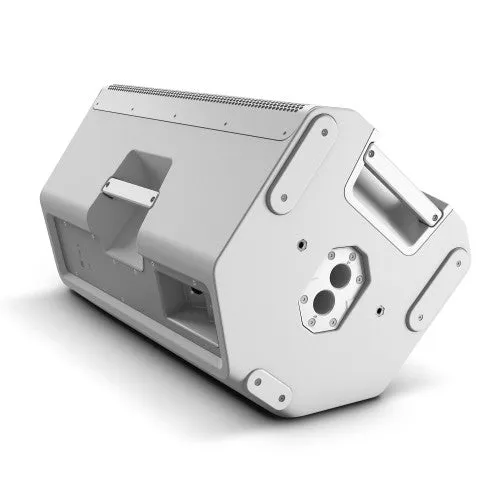

Mounting | 36mm flange (0°, 5°), 6 x M10 flying points |
Monitor angle | 55 ° |
Width | 416 mm |
Height | 695 mm |
Depth | 415 mm |
Weight | 24,7 kg |
