Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Color | Gray |
| Configuration | Without Knock-Outs |
| Cover Locking | Quarter-Turn Latch |
| Cover Mounting | Hinged |
| Dimensions | 16 x 16 x 6 In. (406 x 406 x 152 mm) |
| Enclosure Mounting | Wall Mount |
| Family Name | CONCEPT Family |
| IP Rating | IP66 |
| Material | Steel |
| NEMA Rating | NEMA 13 |
| Series | |
| Size | Medium |
| Size, Approximate Depth | 6" (152mm) |
| Size, Approximate Height | 16" (406mm) |
| Size, Approximate Width | 16" (406mm) |
| Special Features | Hinged |
| Type | Junction Box |
| UPC Code | 78351077310 |
Overview

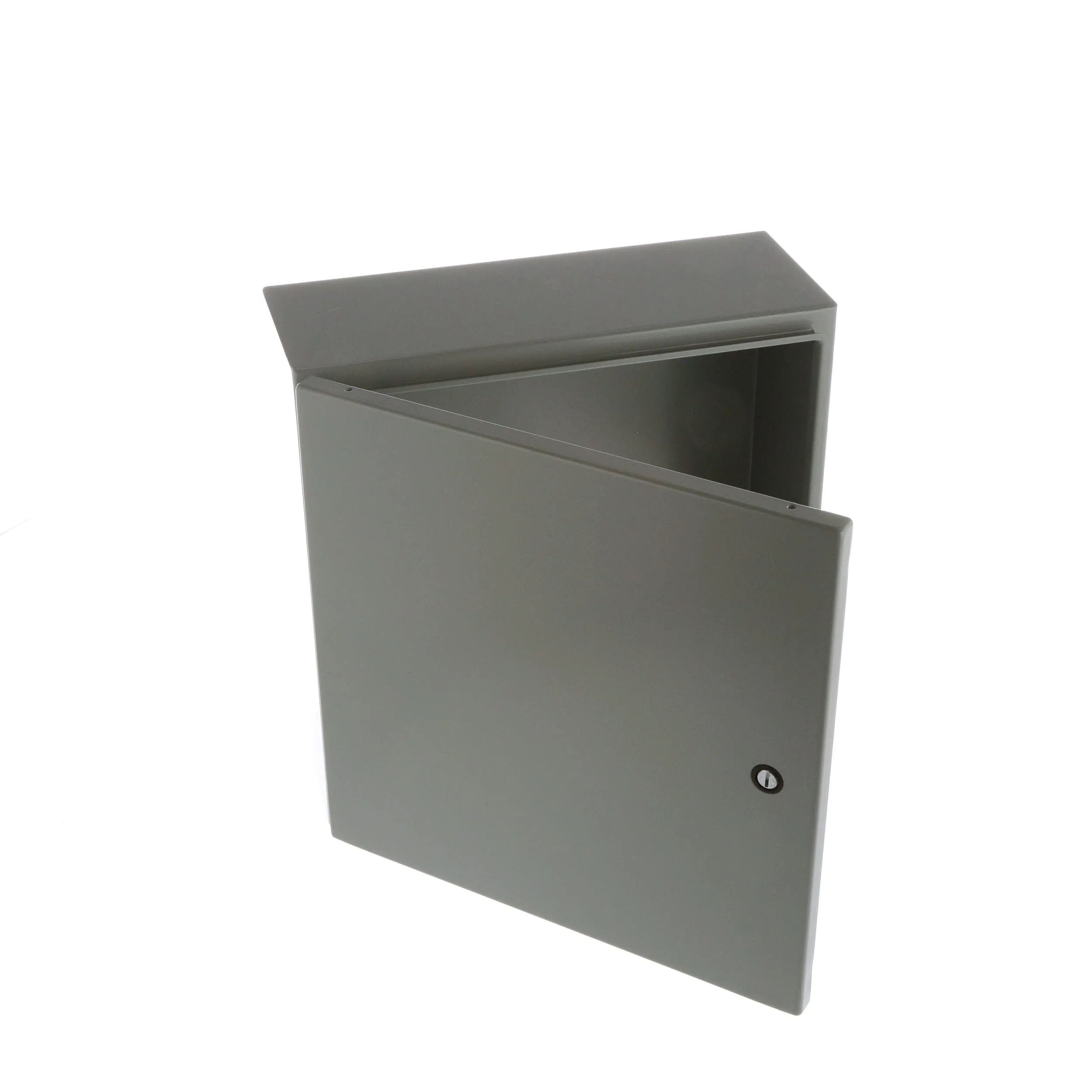

Hoffman Concept Type 4 and 12 Series — 16 or 14 Gauge, Flush Quarter-turn Latching Enclosure | CONCEPT Family:
Concept Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish. Two-door landscape models provide full-width access and easy panel installation. Use stylish Concept EMC Enclosures with their convenient quarter-turn latches in indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.
Features:
***NOTE: Purchase panels separately.
— Optional NEMA-size panels require conversion kit Catalog Number CCPM4
— Reference the Specification Sheet for Popular Cooling Products and Popular Accessories
Accessories for this Range Include:
