Product Details
＋
Description

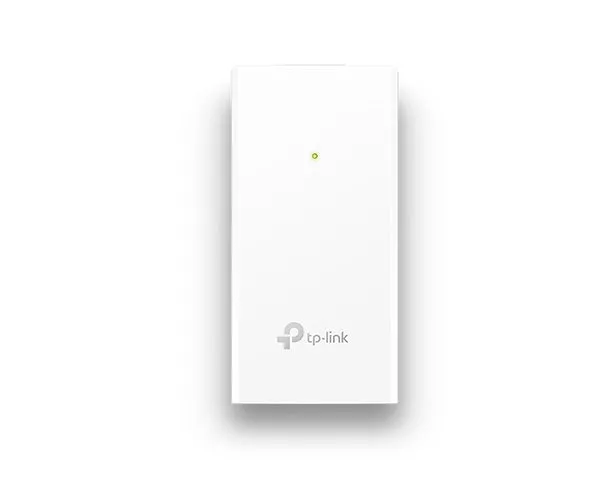

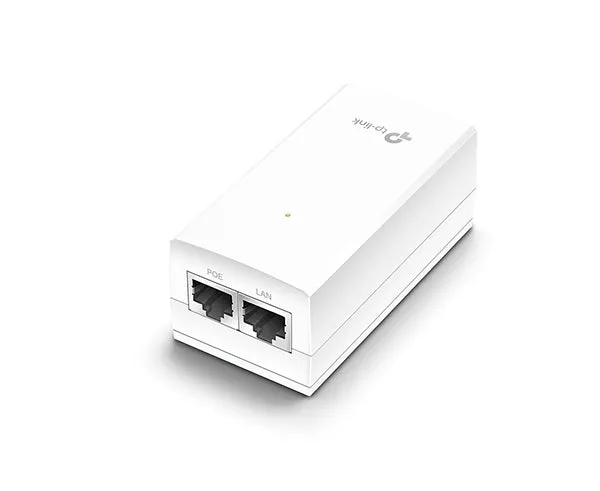

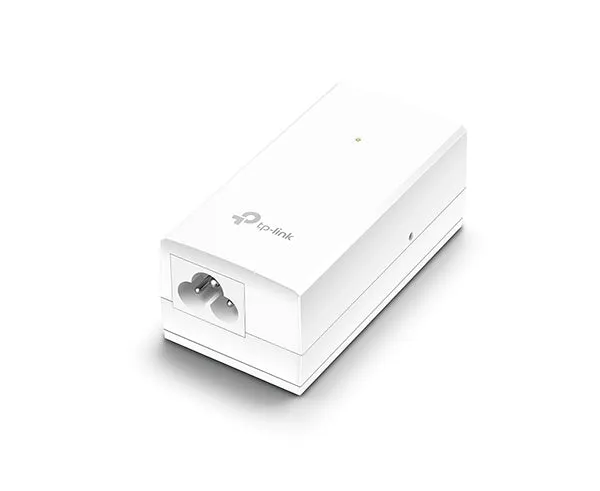

Gigabit 24VDC Passive PoE Adapter
Use the 2-Port Gigabit 12W, 24VDC Passive PoE Ethernet Adapter to add PoE-compatible devices to your office network. Designed for select TP-Link devices, such as access points and powered antennas, this wall-mountable adapter features two Gigabit Ethernet ports. One connects to your router while the other connects to devices, delivering up to 12W, 24VDC of passive PoE power. The adapter automatically detects the necessary amount of power, so no manual configuration is required. A wall mount is included for quick installation.
Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.
Features
Features
- Gigabit Ethernet ports
- 24VDC passive PoE supported
- Auto-adjusted power depends on requirements
- Convenient wall-mounting design
- Plug-and-Play, no configuration required
Specifications
Specifications
| Interface | 2 x 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 100~240V / 50~60Hz AC Power Input Port |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Power Supply | 12W (Max. 24VDC) |
| LED Indicator | Power (PWR) |
| Dimensions ( W x D x H ) | 3.4 x 1.7 x 1.4 in. ( 85.8mm x 43.9mm x 35mm) |
| Certification | FCC, RoHS |
|---|---|
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
What's in the box?
What's in the box?
- 24V, 12W Passive PoE Adapter TL-POE2412G
- Power Cord
- Wall Mounting Kits
