Product Details
＋

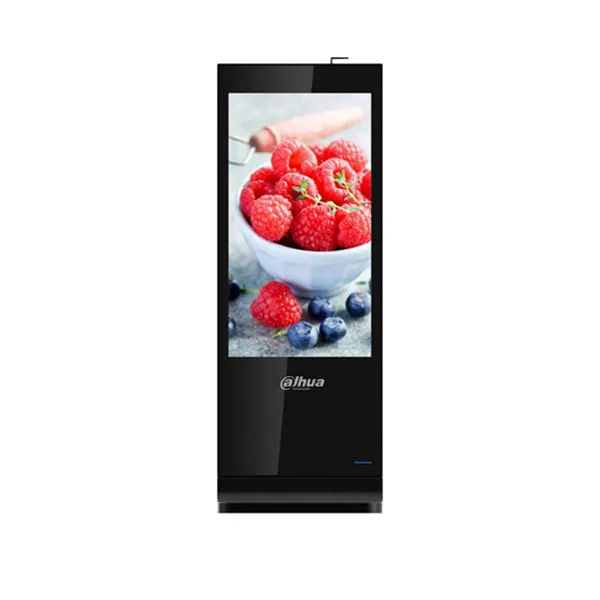

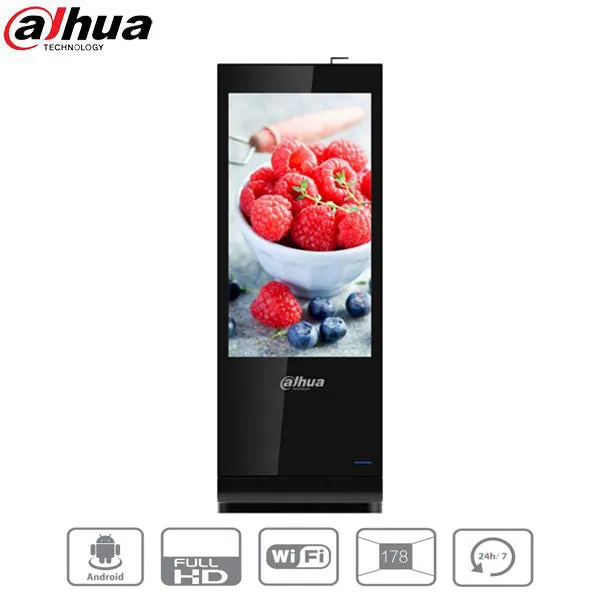

DH-LDV55-INDOOR
Features
- 55-inch, 1080p Full HD Display
- Industrial-grade, Full Metal Casing
- 5 mm Protective Tempered Glass
- Supports a Wide-range of Audio/Video Encoding Formats
- Dahua Media Publish System Provides Unified Remote Management and Point-to-Multipoint Monitor Management
- Quad Core Processor for Powerful Decoding Capabilities
- Built-in Media Player Software and USB Player
- Call 1-800-878-6604 for Dealer Prices!
Technical Specifications
| Display | |
| Viewable Picture Area | 55 in. |
| Mode | Portrait |
| Aspect Ratio |
16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Backlight | LCD |
| Brightness/Luminance | 400 cd/m² |
| Contrast Ratio | 1200:1 |
| Angle of View | Horizontal: 178° Vertical: 178° |
| Response Time | 8 ms |
| Display Colors |
16.7 Million (8 Bit) |
| Interface | |
| Inputs | • One (1) RJ45 • One (1) USB 2.0 • One (1) HDMI • One (1) SD |
| External Control | RS232 |
| Wi-Fi | Enabled |
| Audio Output | Two (2) 2 W Speakers |
| Smart Signage Platform | Media Publish System |
| Internal Player | |
| Operating System | Android 4.4 (Android 5.1 customized) |
| Processor | Cortex-A7 1.5GHz Quad Core CPU |
| RAM | 1 GB |
| Storage | 8 GB |
| Material for Display | Audio, Video, Static Images, Time, Weather, Countdown, Text, Web Page, Streaming Media, PDF |
| Encoding Formats | asf, avi, bmp, gif, jpeg, jpg, mkv, mov, mp3, mp4, png, rm, rmvb, wav, wma, wmv |
| Decoding | 1 channel at 4K 3 channels at 1080p |
| Electrical | |
| Power Supply | 100 VAC to 240 VAC (±10%), 50/60 Hz |
| Consumption | Typical: 59.3 W Standby: ≤ 0.5 W |
| Construction | |
| Dimensions, with pedestal | 2091.80 mm x 790.0 mm 63.60 mm (82.40 in. x 31.10 in. x 2.50 in.) |
| Dimensions, packaging - Screen | 2125.0 mm x 970.0 mm x 299.0 mm (83.70 in. x 38.20 in. x 11.80 in.) |
| Dimensions, packaging - Pedestal | 970.0 mm x 683.0 mm x 354.0 mm (38.20 in. x 26.90 in. x 13.90 in.) |
| Certifications | EN, CFR FCC, IEC |
