Product Details
＋

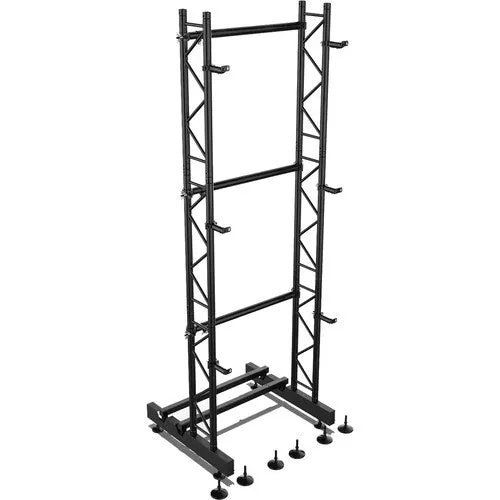

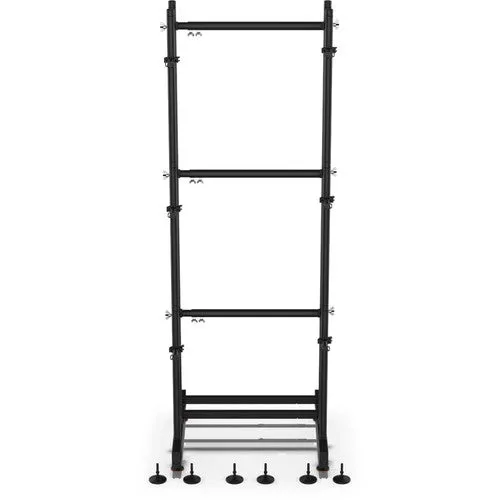

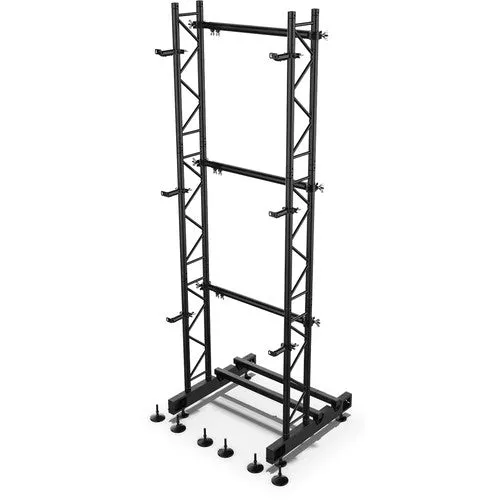

Create a video wall at your next gig with your F series video panels and the CHAUVET DJ Ground Support 2 Kit Floorstanding Video Wall Support. It is designed for use with CHAUVET PROFESSIONAL F2, F3, F4IP, F5IP, and Vivid 4 LED panels to create a floorstanding video wall 4.92 to 8.2' wide and up to 9.85' tall. Video walls of greater width can be achieved with additional Ground Support 2 Kits.
A dual-function rig bar is required to support each column of displays that make up your video wall. Ballast is also required, the weight of which is dependent on the overall height of your video wall. To simplify transportation of your system, a road case is included.
Features
- For Use with CHAUVET F Series Panels
- Supports Video Walls up to 8.2' Wide
- Supports Video Walls up to 9.85' Tall
- Includes Road Case
- Aluminum & Steel Construction
Specifications
| Supported Models | CHAUVET PROFESSIONAL F2, F3, F4IP, F5IP, and Vivid 4 Video Panels |
| Screen Size Supported | Width: 4.92 to 8.2' / 1.5 to 2.5 m Height: Up to 9.85' / 3 m |
| Required Accessories | One DRB-F50CM or DRB-F100CM per Display Column |
| Ballast | Required for 3.28' / 1 m Stack Height: 100 lb / 45 kg Required for 6.56' / 2 m Stack Height: 175 lb / 80 kg Required for 9.84' / 3 m Stack Height: 250 lb / 113.4 kg |
| IP Rating | IP65 Rated for Temporary Outdoor Use |
| Certification | CE, as per Manufacturer |
| Ambient Temperature | -4 to 140°F / -20 to 60°C |
| Construction Material | Aluminum Extrusion and Steel |
| Dimensions | 3.45 x 10.24 x 3.28' / 1.05 x 3.12 x 1 m (Excluding Feet) |
| Weight | Ground Support Without Case: 165 lb / 74 kg Empty Case: 157 lb / 71 kg |
