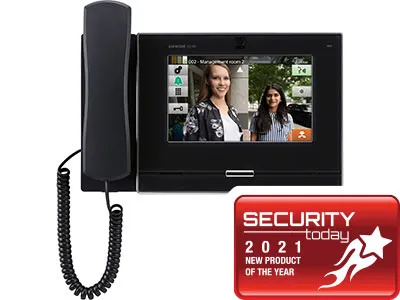

The IXG-MK is an IP video guard station with a 7" LCD touchscreen for the IXG Series multi-tenant system. A guard unit can have up to 8 IXG-MK stations. The IXG-MK station can answer calls from an entrance station, tenant station, or individual door station. Once the call is answered, communication can be hands-free (VOX) or full duplex (handset). Touching the key button will activate the door release associated with the connected entrance station or door station. The IXG-MK can have up to 9,999 units in its address book and it will maintain a history of calls that it has received. A microSD™ card can be added to record calls that are placed to the IXG-MK IP video guard station.
FEATURES
- 7″ TFT color LCD touchscreen
- Color video camera with privacy shutter
- 9,999 unit address book
- View ONVIF Profile S cameras
- Multi-angled desk stand included (30°, 45°, 60°)
- Slot for microSD™ card (not provided by Aiphone)
- 802.3af PoE compliant
- 2 contact outputs, 4 trigger inputs
- 8Ω 0.5 watt speaker output
- 600Ω audio input
- Features Telecoil (T-Coil) to assist individuals with hearing loss or impairments while wearing compatible devices.
SPECS
Power Source: PoE
Screen: 7" LCD TFT Touchscreen
Monitor resolution: 800 x 400
Communication: Full-duplex
Audio Codec: G.711(µ-law, A-law)
Video Codec: H.264, MJPEG
Protocol: IPv4/v6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP/RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS, TLS
Encryption: TLS 1.0, 1.1, 1.2
Operating Temp: 32° ~ 104°F (0° ~ 40°C)
Dimensions: 8-1⁄16" H x 11" W x 2-3⁄16" D
