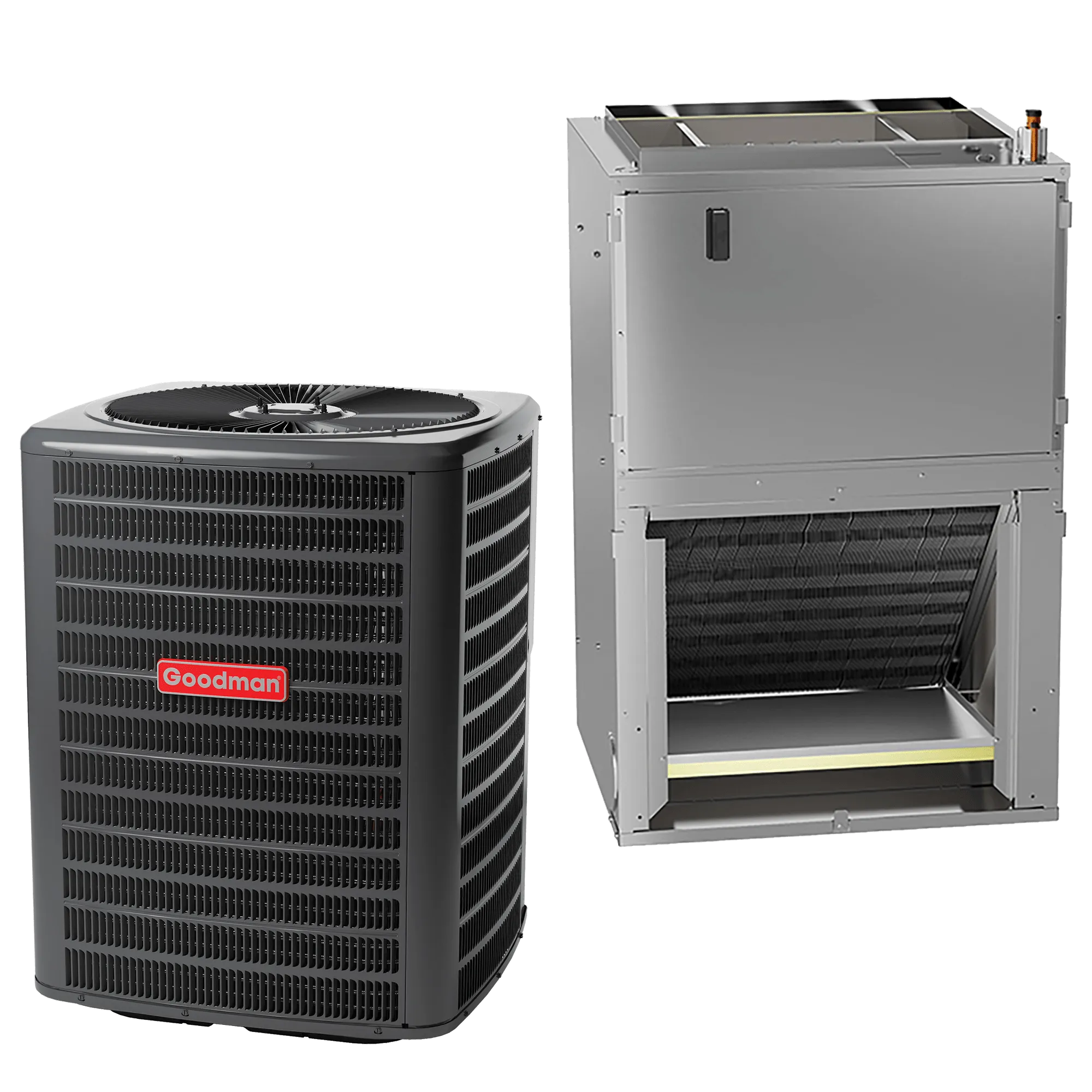

Goodman GLXS4BA3610 AWST36LU1308

Goodman GLSX4B Condenser units use R-32 refrigerant gas. Therefore, they will not work with any R-410A AC equipment.

Goodman brand lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials, and spot-on manufacturing. Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology.

Goodman uses advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that is designed to stay for many years.

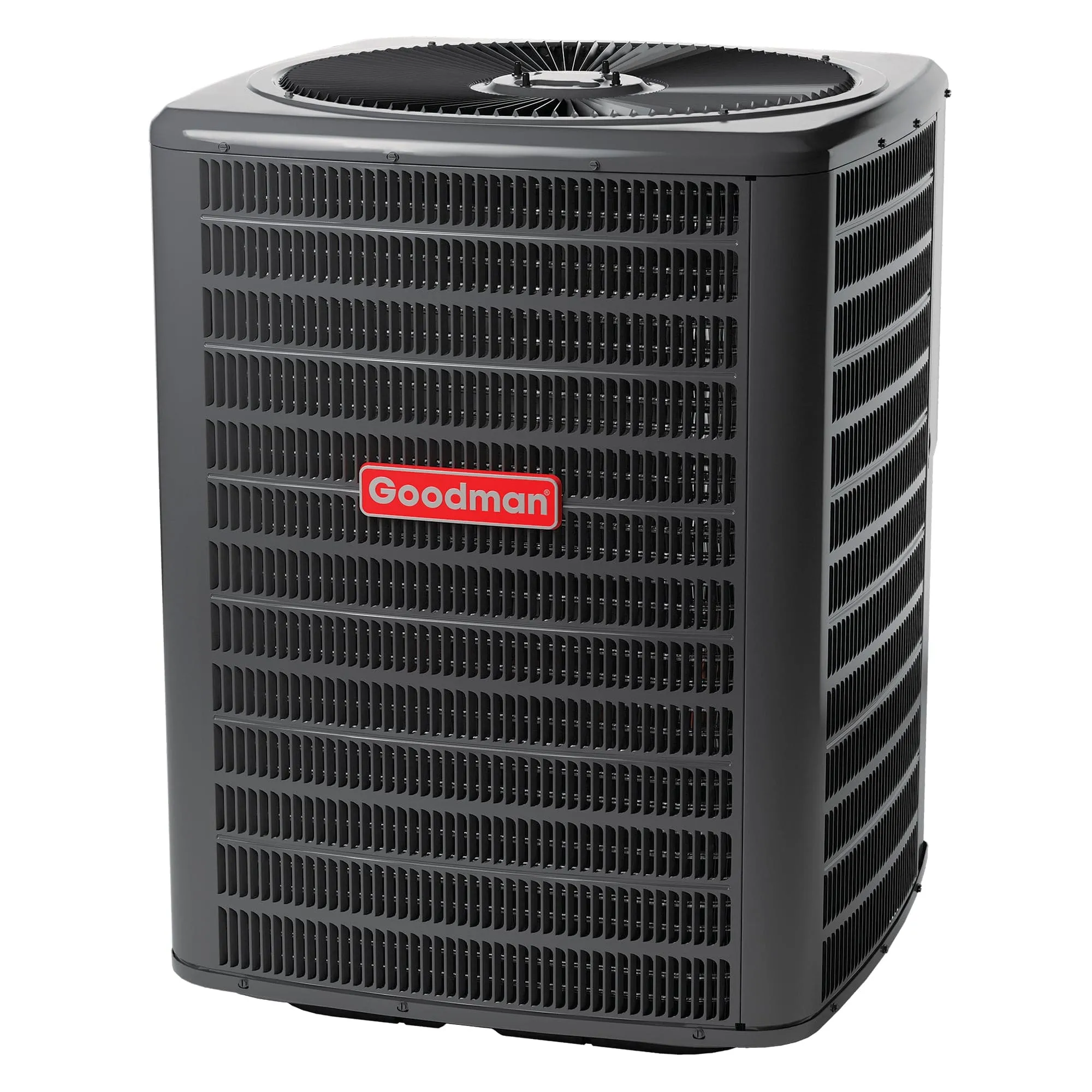

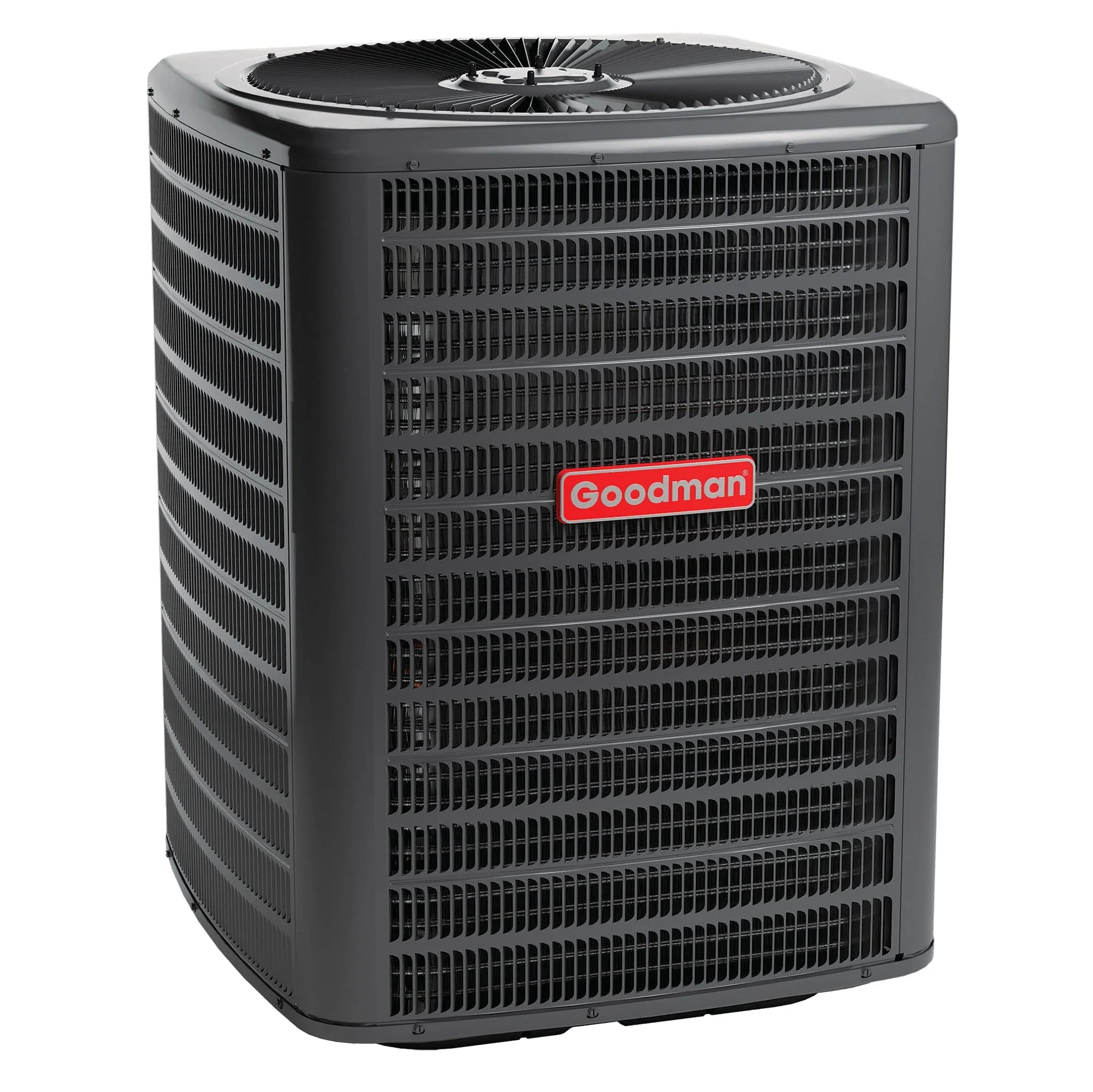

GLXS4BA3610 | Outdoor Unit

The Goodman GLXS4BA3610 Energy Efficient Classic, R-32, 15.2 SEER2 air conditioner is loaded with features designed to provide outstanding performance for years to come for lower energy bills compared to lower efficiency units. Additionally sound-dampening features help ensure that your cooling system does not interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features.

• Energy-efficient compressor
• Fully charged for 15' of tubing length
• Copper tube/ enhanced aluminum fin coil - 5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

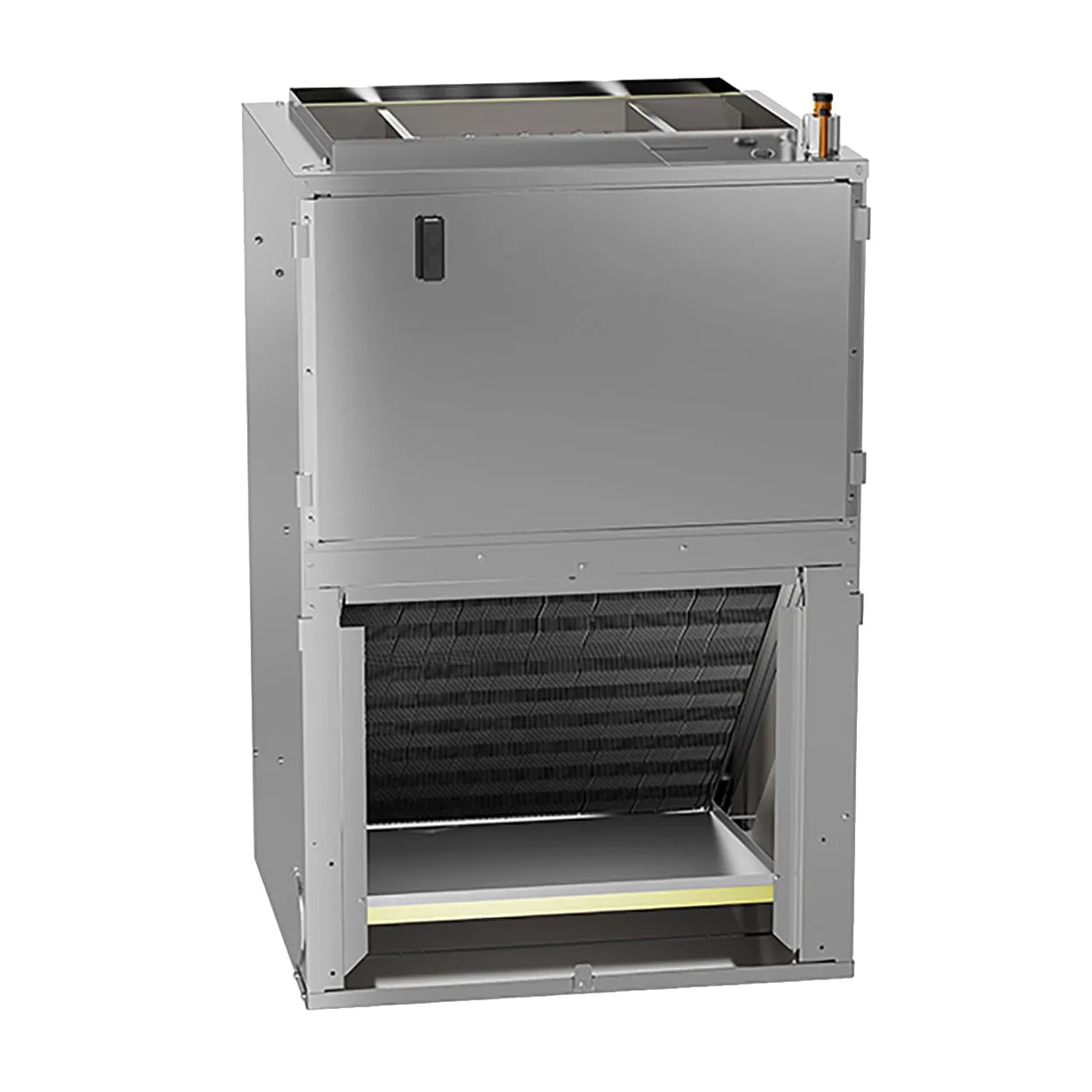

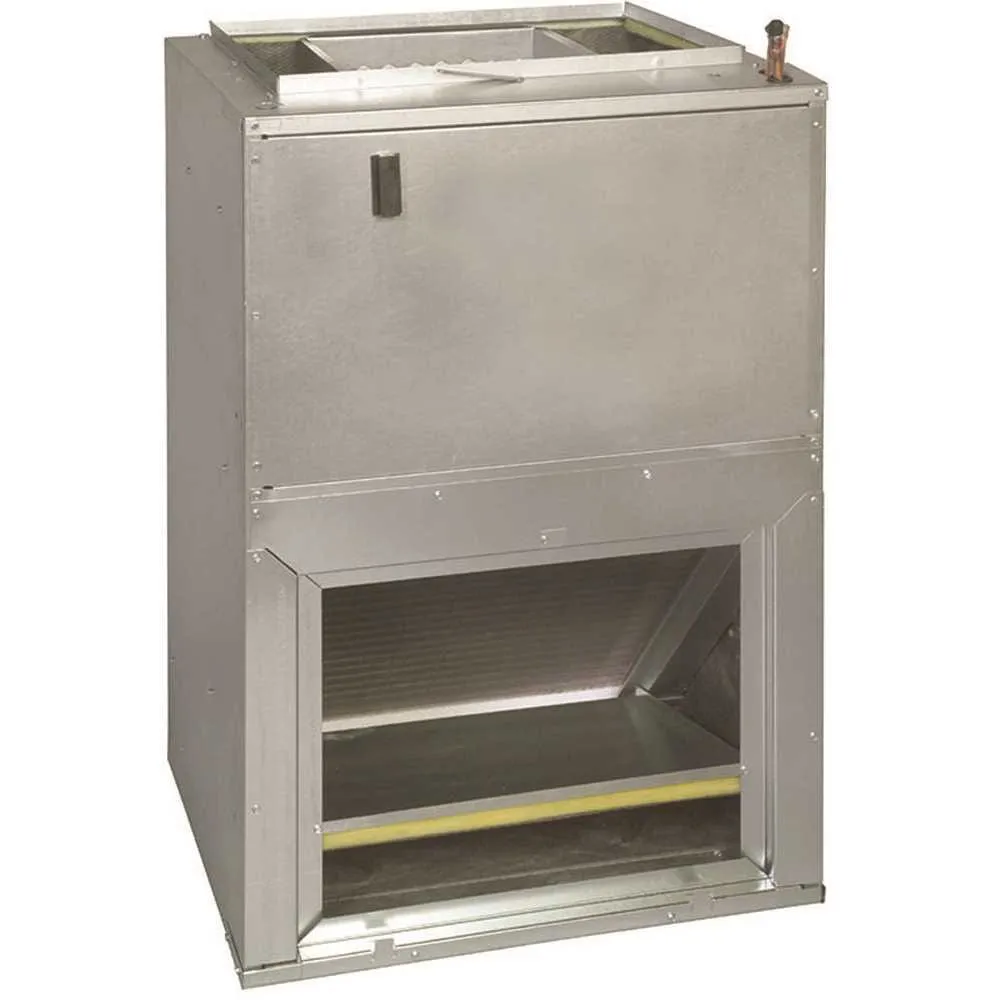

AWST36LU1308 | Wall Mount Air Handler

The Goodman AWST36LU1308 R-32 wall mount air handlers have features designed to provide outstanding performance, designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology. With the advanced techniques and materials used you will know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend you will love for many years.

Product Features

• Equipped with a fully adjustable TXV
• Direct-drive, multi-speed motors allow air volume variation for heating/cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models.
• Factory installed R-32 sensor designed for the lifespan of the coil.
• Factory-installed pull-type disconnect.
• Built-in filter rack
• Wall-hanging bracket provided
• AHRI Certified; ETL Listed

WHAT’S INCLUDED
Your Goodman Indoor Coils from Heat & Cool Comes with:

• Goodman GLXS4BA3610 | Outdoor Unit
• Goodman AWST36LU1308 | Condenser Unit
• Installation Manual

• User’s Manual
• Manufacturer Warranty

MANUFACTURERS WARRANTY

• 10 Year Parts Warranty. Complete warranty details available at . To receive the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
